RAFT SLAB FOUNDATIONS
We specialise in supply, preparation, and installation of concrete raft foundations for residential and light commercial builds.
We can manage every stage in the construction of your concrete raft foundation. Site preparation, management of all sub-contractors (electricians, plumbers, concrete suppliers through to the installation and finishing of your raft floor.
- The original Rib Raft foundation system revolutionised the way floors were constructed. Now, over 20 years later, ‘poly pod’ Raft floors remain the go-to for builders looking for cost efficiency, quicker construction, and seismic strength.
- Raft floors can be honed to expose aggregates or coloured to become your home’s feature floor
ADVANTAGES OF A RAFT POD SLAB
- Reduced costs Construction can continue in all weather – As the Raft slab floor is built on the ground, and not in the ground, this means that construction isn’t weather-dependent. The installation can commence and continue in wet weather.
- Prompt installation and less waste – As the Raft slab system is efficiently designed, the labour involved, and therefore time, is heavily reduced. This speeds up installation markedly. Compared to traditional foundations, there is also much less excavated material and waste.
- Seismically sound – In comparison with conventional footings-based foundations, Raft slabs are seismically strong and performs better in an earthquake.
- Cost-saving – Raft foundations are cost saving when compared to traditional foundation methods, as there is no need to dig footings.
- Energy-efficient – Boasting a great thermal rating, insulated Raft concrete foundations are compatible with underfloor heating.
- Raft slabs are popularly used for residential and light commercial flooring.
- Less concrete waste
- Minimal disturbance of soil
- Lightweight and easy to handle
- Strong and durable
- Thermal value
- Low water absorption
- Recyclable (sustainable material)
- Manufactured in New Zealand
- Made from fire retardant grade raw material
- Ability to accurately predict the required concrete quantities
Increased construction efficiency – can still work when it is wet

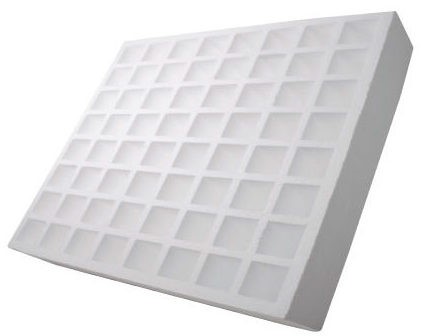

EPS Pods
EPS Pods are suitable for any raft or floating pod floor system used throughout New Zealand. Made from expanded polystyrene, Pods are exceptionally durable, retaining compressive strength, resistance to water and thermal insulation for the life of the building.
For a solid insulation solution, Pods achieve a substantially higher R-value than other insulating materials. Expanded polystyrene has a long-established reputation for creating energy efficient homes that rely less on heating and cooling.
Made of 98% air and containing recycled material, Pods are exceptionally strong and do not settle over time.
RIBRAFT POD SIZES
All measurements in millimetres (height, length, width, height)
- 1100 x 1100 x 200 mm
- 1100 x 1100 x 220 mm
- 1100 x 1100 x 300 mm
SPACERS
The spacer holds the pod in place and ensures that the waffle pods are tight and secure, thus holding the entire system together.
PODS are manufactured from standard Expanded Polystyrene material. Pods are available as moulded pods which incorporate a waffle design or solid pod
SLABINE supplies a variety of sizes that suit the specific design. Both moulded and solid pods contain recycled content.
ADVANTAGES OF EPS IN BUILDING EPS consists of 98% air and has long been used as a thermal insulator in a number of applications. The insulating ability of EPS makes it an ideal material for energy efficient building products particularly when combined with its other properties: • Lightweight making it easy to transport and install; • Moisture resistant increasing water penetration resistance; • Sound absorbency which increases sound insulation particularly when used in combination with harder building materials such as concrete; • Safe to use – EPS is non-toxic, does not contain CFCs, can be 100% recycled, does not harbour micro-organisms, is odourless and non-allergenic; • Versatile in that it can be moulded, shaped and cut into virtually any shape or pattern. This allows the cost-effective production of numerous decorative building products such as mouldings and cornices; • Fire retardant – All EPS used in TASS building products is fire retardant and will not propagate or contribute to the spread of fire; • Long lasting – EPS does not rot or degrade over time and remains dimensionally stable so EPS building products will remain fully functional for the life of any building in which they are used.
DESIGN OF A RAFT POD SLAB
AN APPOINTED ENGINEER WILL PROVIDE YOUR PROJECT WITH A DESIGN. Our team will work closely with your engineers and architects to achieve the best outcome for your project.
Example of a typical plan view of a Raft Design
Example of a Typical sections of a Raft slab.

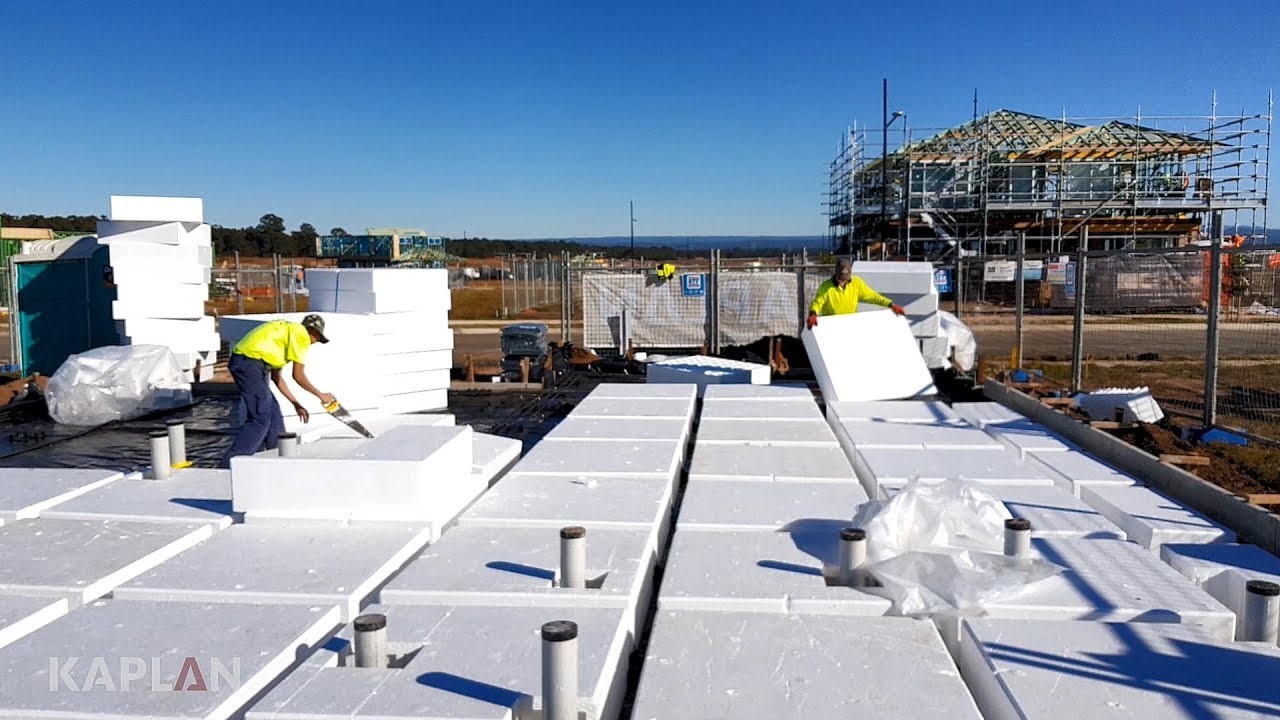

Installation of a Raft slab

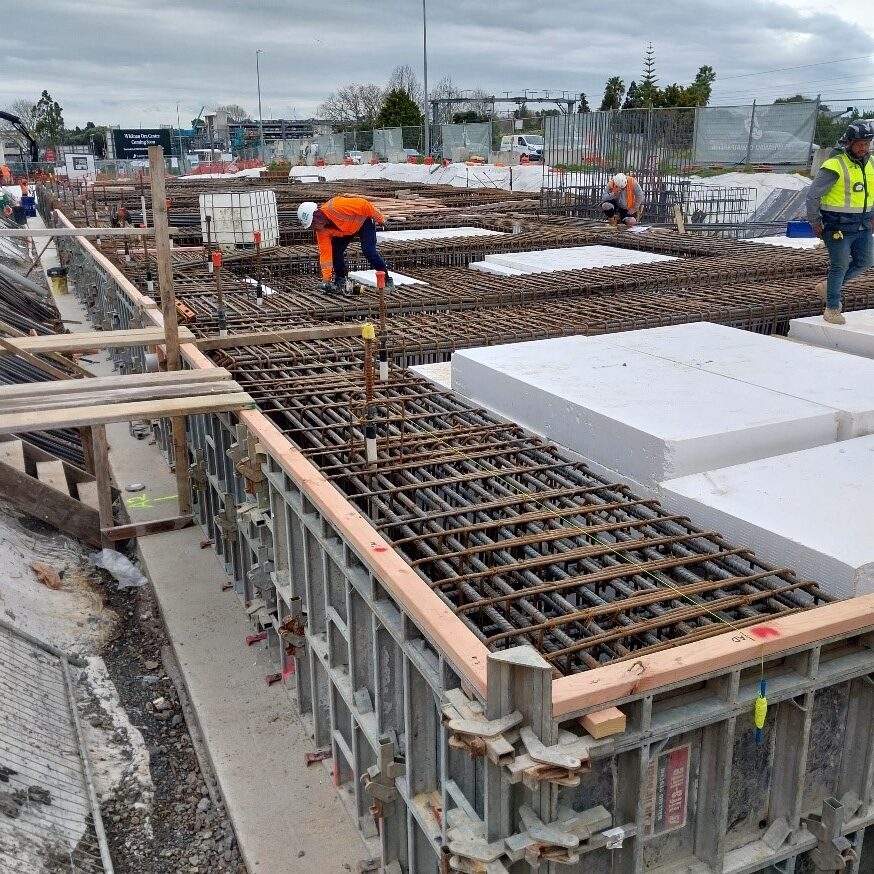

STAGE 1 Clear and level the site. A footprint of the building site can be outlined and a layer of fines spread over the area. Construct and erect the boxing and lay the damp proof membrane over the fines. Plumbing and services go in at this stage.

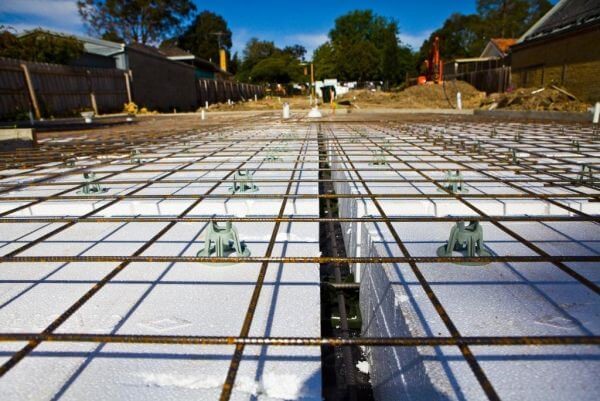

STAGE 2 The site is now ready for placement of the Polystyrene PODS, in conjunction with the universal spacer, The type of spacers will generally be determined by the engineer or specifier. Pods are placed 300mm in from the perimeter boxing and 100mm apart over the floor area, or as recommended in the engineer’s schedule. Reinforcing steel is laid around the perimeter and between the pods. Steel mesh is then laid over the pods using bar chairs where necessary.
STAGE 3 The site is now ready for the pouring of concrete, which can be pumped or barrowed. The concrete should be vibrated and screeded as per normal practice and adequate curing time should be allowed. Remove the boxing after curing
MANUFACTURING STANDARD All products and grades of Expanded Polystyrene supplied by Slabline for pod floors comply with manufacturing standard AS 1366 Part 3 1992.
CONTACT US FOR A QUOTATION …………..

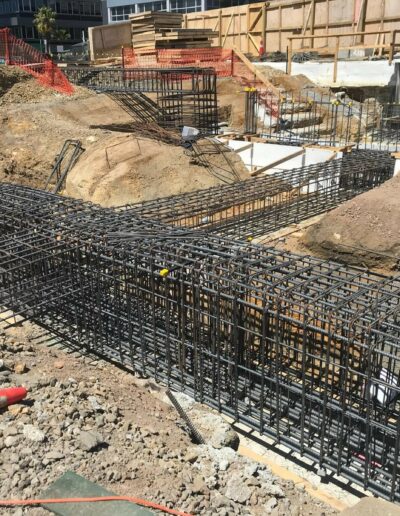

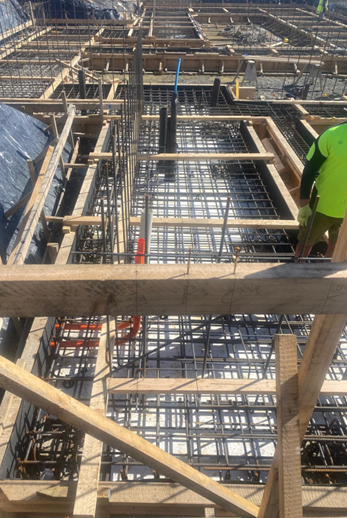

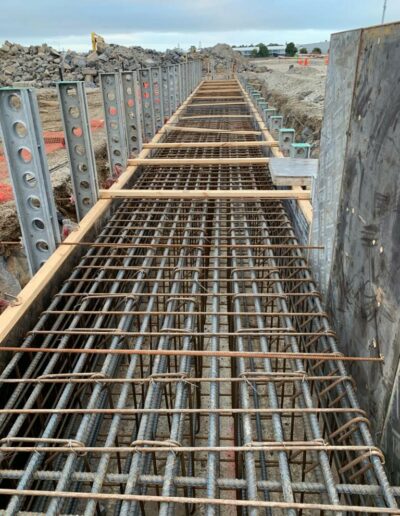

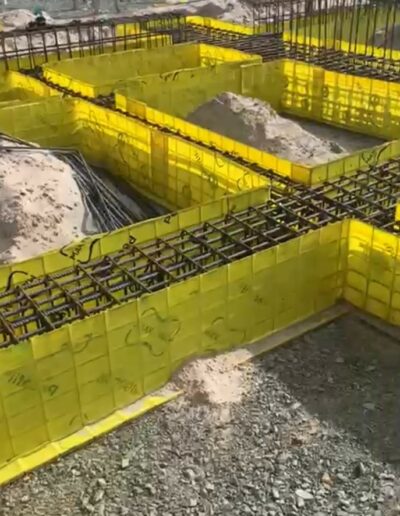

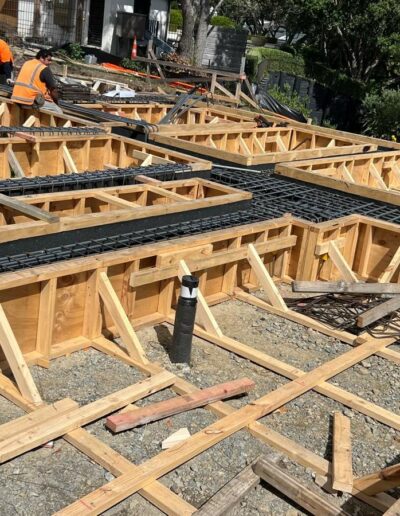

Mass Concrete Foundations
When it comes to any building project, you don’t want to cut corners when it comes to your concrete foundation. You want high quality workmanship, fast efficient build times, and a high-quality foundation that you can trust. We make sure that your project is done right the first time, every time. We Have solutions for residential and commercial building foundations.
Whatever your concrete needs are, get in touch with our team at Slabline. We can guide you on the best solution for your next building project. Slabline is also familiar with alternative shuttering and foundation solutions and we keep up to Date with new products within our industry.
Our teams have completed a number of building foundation works across Auckland from small building foundations to modern split level housing apartment foundations. On each project everything is taken care of from site excavation through to the finished foundation ready for your builders to complete the next stage.

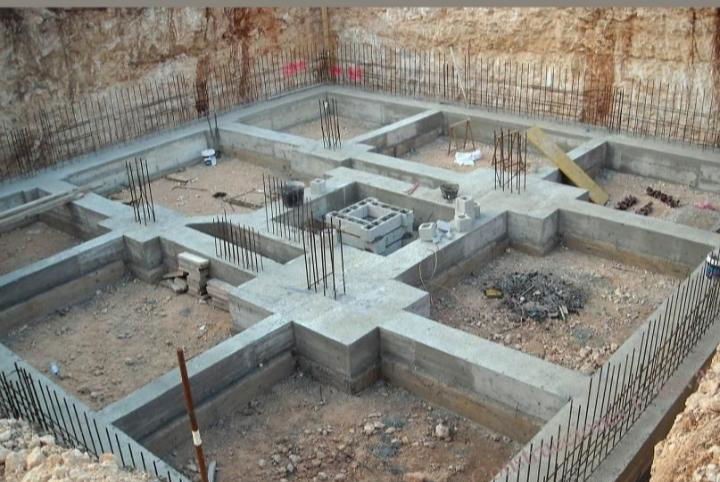

Typical section of mass concrete foundations
Slab on Grade
The original slab
Slab on grade or Conventional foundations are traditional NZS 3604 type foundations that were exclusively used prior to Raft floor foundations being developed. They transfer the building loads directly into the ground through foundations excavated into good ground as opposed to distributing throughout the foundation as in a raft slab. The slab itself is rarely a structural component with the exterior foundations and Hardfill doing all the work Conventional foundations are good on sloping sites or where the floor level is at least 1.0 m above finished Ground Level.

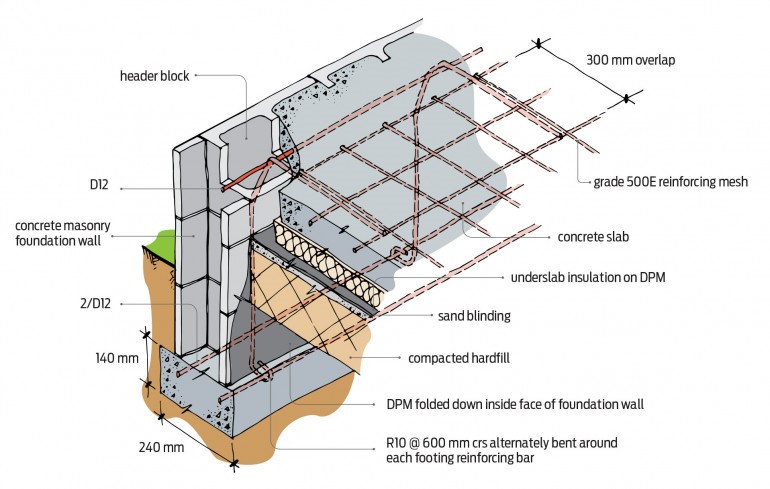

Typical engineering details for Foundations and slab on grade.
